<< Product features
● Eccentric structure design
The integrated center of gravity coincides with the rotation center to reduce the burden of the driving system, reduce the wear of the driving system, reduce the power of the motor, and further improve the reliability of the whole tracking system

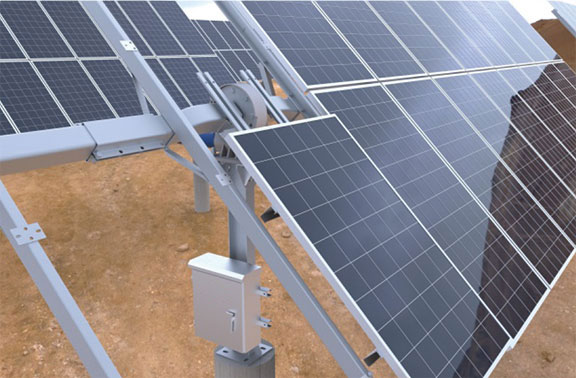

● Design of self power supply system
1) The self powered system is powered by an independent battery board to meet the tracking needs;
2) The control box is equipped with energy storage battery and charge discharge controller, and the stored power can meet the continuous and stable operation of the system in cloudy and rainy weather for 7 consecutive days;
3) One control box controls two sets of tracking systems, which greatly reduces the cost.
● Maintenance free design
The use of polymer bearings can effectively prevent the erosion of sand, dust, rain and snow. At the same time, the gland design is convenient for later maintenance and replacement.
<< System features
1. The rotation design enables the installation angle of photovoltaic modules to be adjustable. Customers can manually adjust the inclination of modules according to seasonal changes to achieve better power generation efficiency.
2. Manually adjustable, convenient and fast
3. The structure is calculated strictly and the reliability is guaranteed
<< Specification parameters
Column mode: horizontal or vertical
Installation angle: 5 ~ 45 °
Main material: Steel / aluminum
Wind speed: it can be designed according to customer needs
Snow load: it can be designed according to customer needs
Flat type single adjustable steel support AK-K1-S
<< Characteristic
The adaptability to the height of mountainous terrain can adapt to the terrain with a slope of 30 degrees, and the angle adjustment is convenient.
